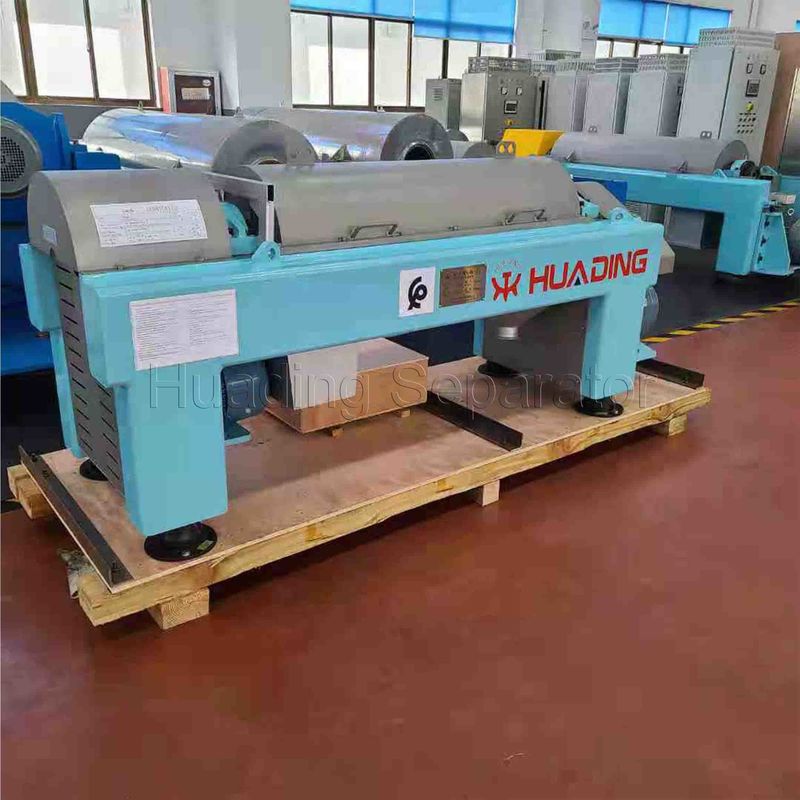

LW Series 2-Phase Decanter Centrifuge for Sludge Dewatering

Safety Note: Never open the lid while the centrifuge is spinning. Although many machines have a safety shutoff feature, the rotor will continue to rotate due to inertia. Proper maintenance is key to ensuring the longevity of your centrifuge.

Three-Phase Working Principle: The bowl and screw make high-speed rotation with a certain differential speed between them. Materials enter the bowl from the feed tube. Under centrifugal force, high specific weight liquid accumulates on the inner walls of the bowl and is discharged through the centripetal pump or overflow plate. Low specific weight liquids form an inner liquid ring and are discharged from the overflow channel. Solids are continuously pushed to the taper end of the bowl by the spiral material pusher and discharged from the residue outlet after going through the drying area.

The LW series 2-phase sedimentation decanter centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge, ideal for sewage sludge dewatering and thickening.

• All parts contacting materials are made of stainless steel or duplex stainless steel
• Continuous and automatic operation minimizes labor costs
• Dual motor drive with adjustable bowl and screw speed via VFD
• Continuous spiral discharging with PLC control and touch screen operation
• Scroll conveyor coated with wearable alloy or welded with alloy plate (based on material characteristics)
• Comprehensive safety protections including rotation rate detection, vibration protection, motor overload protection, and zero differential speed protection
• Specially designed bowl and spirals press against dewatered cake at conical end to minimize moisture content
• Double motor double frequency conversion with multi-stage planetary gear drive for real-time adjustment
• Unique DC bus-powered design ensures strong spiral torque while reducing power consumption
• Multiple wear protection options including welded hard facing, spray coating, ceramic port, and carbide tiles

Huading Separator has been at the forefront of centrifugal separation technology for over 60 years. Established in 1954, we are the leader in mechanical separating technology in China. Our machines serve diverse industries including beverage, dairy, oil recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and water treatment.
